Flow (تجهیزات اندازه گیری جریان )
High-performance instruments for the
flow measurement of liquids, gases and steam


Download Flow Catalogue

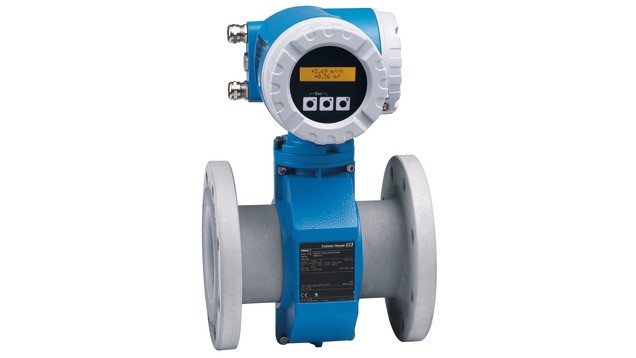

Electromagnetic
Universal measuring principle for
all conductive liquids. Virtually
independent of pressure, density,
temperature and viscosity. Even
liquids with solids can be measured,
e.g. ore slurry or cellulose pulps.
Over 2 million Endress+Hauser magmeters
installed since 1977!
Sizes: DN 2 to 2400.
DDDDDDDDDDDDDDD
DDDDDDDDDDDDDDD
DDDDDDDDDDDDDDD
DDDDDDDDDDDDDDD

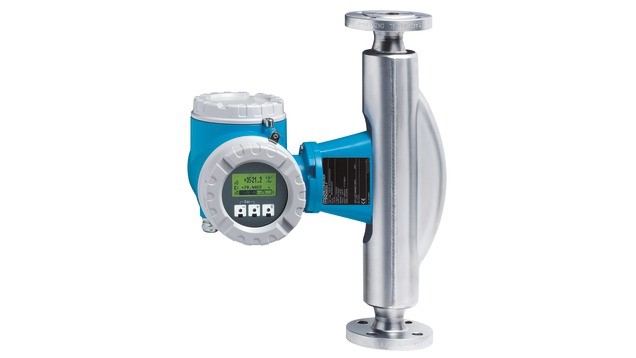

Corilis
Universal measurement principal for
liquids and gases. Multivariable
sensors: simultaneous and direct
measurement of mass flow,
density, temperature and viscosity.
Independent of the physicval fluid
properties.
Sizes: DN 1 ro 400 (max.4100t/h).
DDDDDDDDDDDDDD
DDDDDDDDDDDDDD
DDDDDDDDDDDDDD
DDDDDDDDDDDDDD
DDDDDDDDDDDDDD

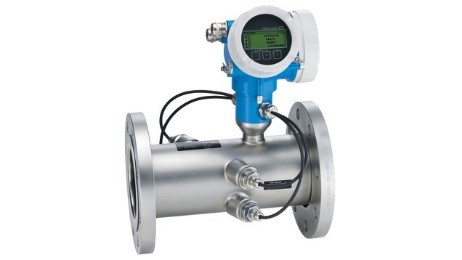

Ultrasonic
Volume flow measurement
of clean liquids, regardless of
electrical conductivity with either
clamp-on or inline sensor type.
Ultrasonic measurement enables
cost-effective and economical
flow metering anywhere in the
process. Independent of pressure,
temperature and the physical fluid
properties. Special devices for
measuring wet or dirty gases at low
pressures, e.g. biogas or land fill gas.
Sizes: DN 15 to 4000.


Thermal
Direct mass flow measurement of
gases with low process pressure up
to 40 bar. Measuring principle with
a high operable flow range (100:1)
and an excellent low-end sensitivity.
Negligible pressure loss.
Sizes: DN 15 to 1500
DDDDDDDDDDDDDDDDDDDDDDDDD
DDDDDDDDDDDDDDDDDDDDDDDDD
DDDDDDDDDDDDDDDDDDDDDDDDD
DDDDDDDDDDDDDDDDDDDDDDDDD
DDDDDDDDDDDDDDDDDDDDDDDDD

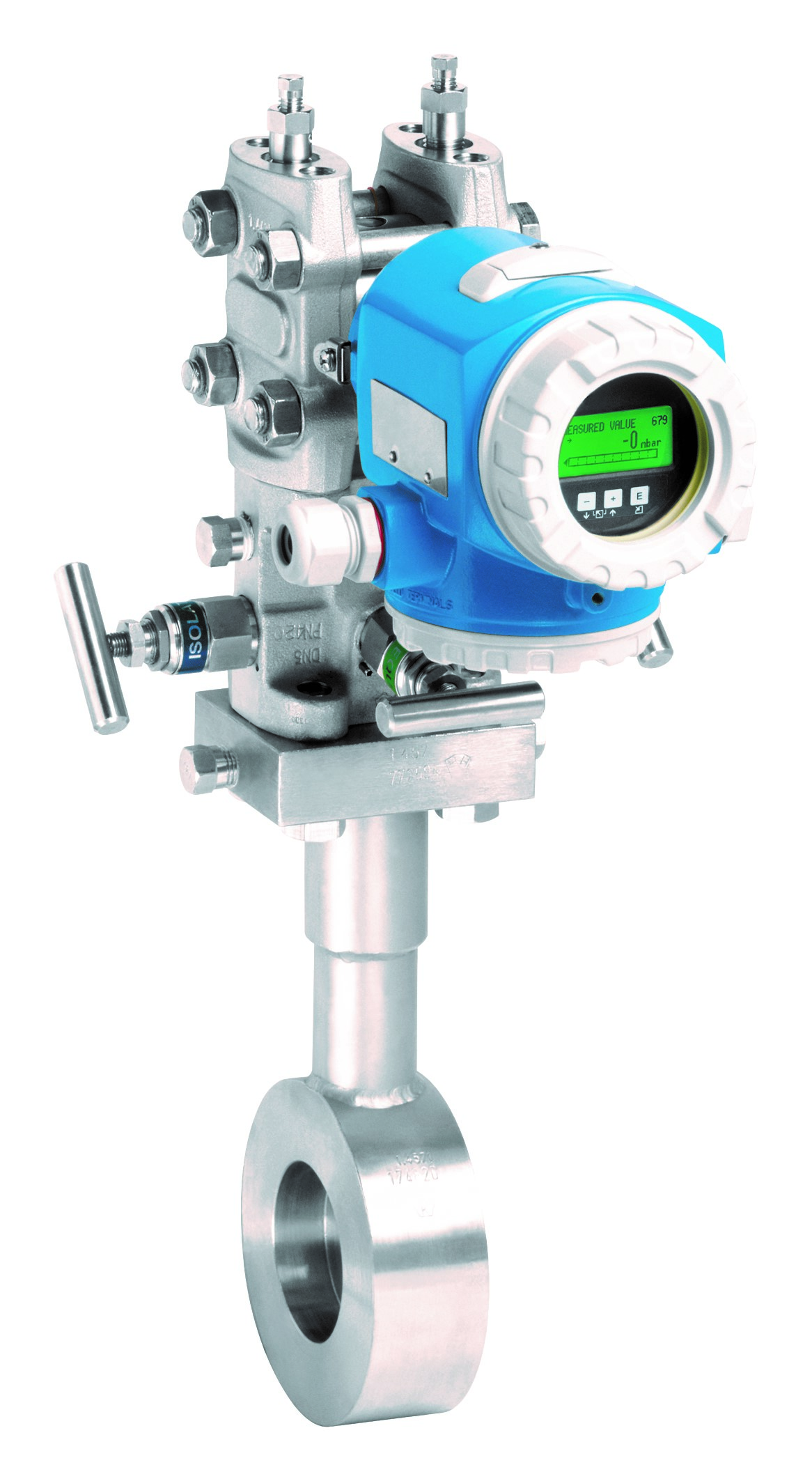

Differential Pressure (DP)
Universally applicable for liquids,
gases and steam up to 420 bar and
1000°C. Robust primary element as
it is completely mechanical with
no moving parts.
The transmitter can be replaced
during operation, e.g. for
maintenance or modernization
of the measuring point without
interrupting the process.
Sizes: DN 10 to 4000.
DDDDDDDDDDDDDDDDDDDDD
Vortex
Universally applicable for the
measurement of liquids, gases and
steam. Extremely robust with regard
to external vibrations, dirt, water
hammer and temperature shocks.
Largely independent of changes in
pressure, temperature and viscosity.
High long-term stability, no zero point
drift. Efficient steam plant operation
thanks to the only wet steam
detection of its kind in the world.
Sizes: DN 15 to 300.
